Solar Acdb and Dcdb

Solar energy is rapidly transforming the power landscape across rural and semi-urban Maharashtra, and Gadchiroli is no exception. With increasing adoption of rooftop solar, agricultural solar pumps, and off-grid solar systems across the district, one critical component is often underestimated — the ACDB and DCDB Box System. At Sara Solar Services, we specialize in professional Solar ACDB and DCDB Box System Installation in Gadchiroli, ensuring every solar setup we touch is not just powerful, but safe, compliant, and built to last.

Whether you are a homeowner, a farmer, or an industrial unit owner stepping into solar energy, understanding the role of ACDB and DCDB boxes — and having them correctly installed — is the difference between a protected investment and a vulnerable one.

Understanding Solar ACDB and DCDB Box System Installation

Before diving into why professional installation matters, it is important to understand what these two critical components actually do.

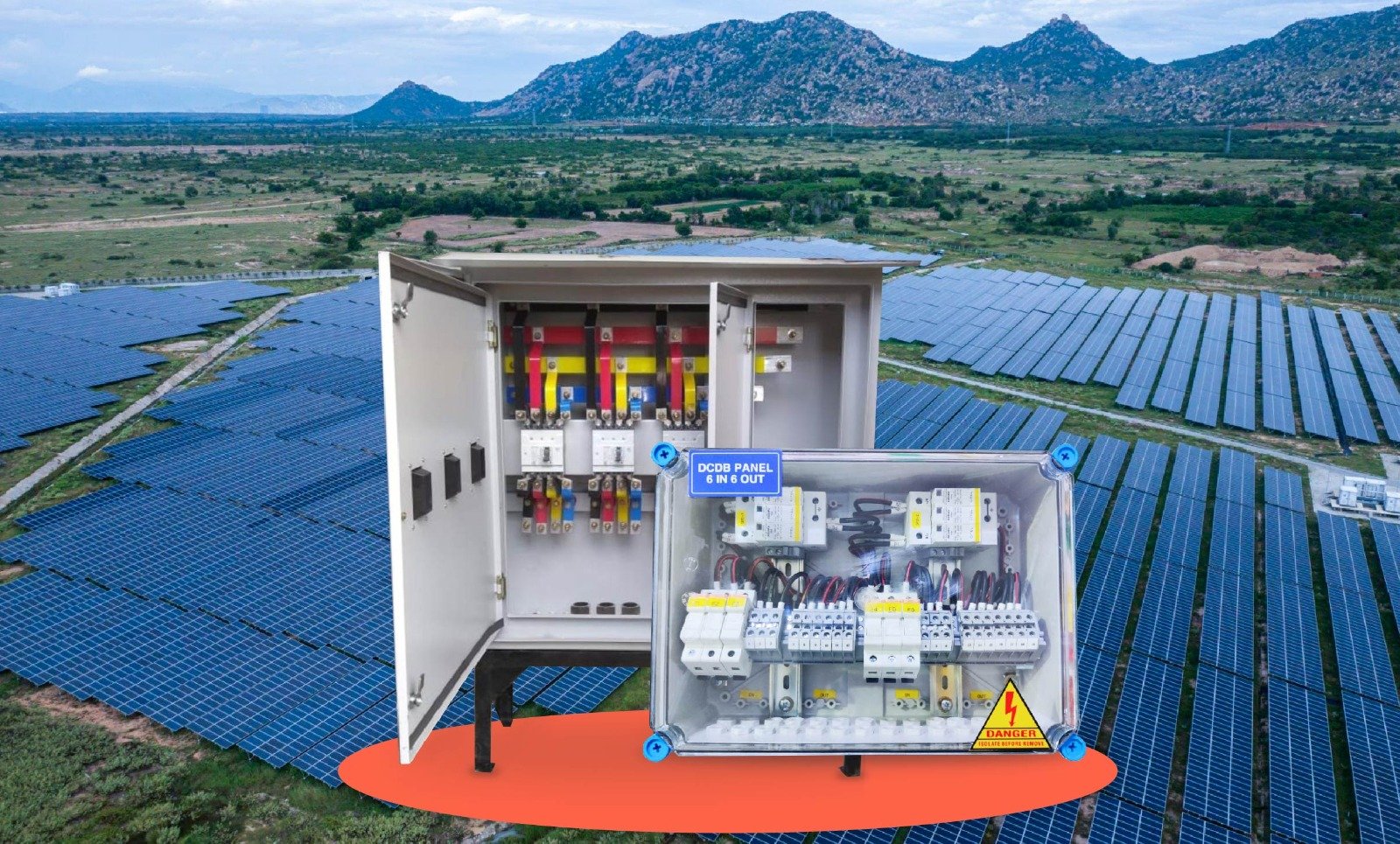

DCDB – DC Distribution Box: The DC Distribution Box (DCDB) sits between your solar panels (or string arrays) and the solar inverter. It receives the direct current (DC) output from multiple strings of solar panels and consolidates them into a single, protected feed going into the inverter. The DCDB houses string fuses or MCBs (Miniature Circuit Breakers), surge protection devices (SPDs), DC disconnects, and monitoring terminals. It protects the solar array from reverse current, voltage surges, and short circuits on the DC side.

ACDB – AC Distribution Box: The AC Distribution Box (ACDB) is installed on the output side of the inverter — between the inverter and the main electrical panel or grid connection point. It carries the alternating current (AC) output generated by the inverter and provides protection through MCBs, surge arrestors, energy meters, and isolation switches. The ACDB is the last line of defence before solar power enters your home or facility's electrical system or the grid.

Together, the Solar ACDB and DCDB Box System Installation in Gadchiroli creates a complete protection framework — shielding your solar investment from lightning surges, overcurrents, ground faults, and electrical fires on both the DC and AC sides of your system.

Why Choose Sara Solar Services?

Sara Solar Services has established itself as the most trusted solar solutions provider across the Chandrapur-Gadchiroli belt. Here is why clients across Gadchiroli consistently choose us for their Solar ACDB and DCDB Box System Installation in Gadchiroli:

• Certified Solar Electricians: Our team holds valid certifications in solar PV system installation, electrical safety, and panel integration — ensuring every ACDB/DCDB installation meets CEA (Central Electricity Authority) and MNRE guidelines.
• Premium Quality Boxes & Components: We supply and install ACDB/DCDB boxes from MNRE-approved manufacturers, fitted with branded MCBs, SPDs, DC fuses, and weatherproof enclosures rated for IP65 and above — suitable for outdoor and semi-outdoor environments common in Gadchiroli.
• Custom-Designed Systems: Every solar installation is unique. We design ACDB and DCDB boxes tailored to your system's string configuration, inverter capacity, and load requirements — not a one-size-fits-all approach.
• End-to-End Installation: From cable routing, box mounting, and component wiring to testing, commissioning, and documentation — we handle everything from start to finish.
• Compliance & Net Metering Support: Our installations are fully compliant with MSEDCL requirements, making net metering application and approval smooth and hassle-free.
• Local Knowledge: Gadchiroli's dense forest zones, high humidity, and frequent storm activity demand robust, weatherproof electrical protection. We understand these local challenges and engineer our solutions accordingly.

Key Features of Solar ACDB and DCDB Box System

Sara Solar Services installs ACDB and DCDB systems that are feature-rich, durable, and performance-optimized:

• IP65/IP66 Weatherproof Enclosures: Powder-coated, corrosion-resistant metal or polycarbonate boxes that withstand heavy rainfall, humidity, and heat — critical for Gadchiroli's tropical climate.
• String Fuses & DC MCBs: Individual string protection for each panel array, preventing one faulty string from damaging the entire system.
• Type 1 & Type 2 Surge Protection Devices (SPDs): Essential lightning and surge protection on both DC and AC sides, especially in Gadchiroli's storm-prone geography.
• DC Isolator / Disconnect Switch: Allows safe isolation of the solar array from the inverter for maintenance, inspection, or emergency shutdown.
• AC MCBs & RCCB: Overcurrent and residual current protection on the AC output side to prevent electrical fires and electric shocks.
• Energy Meter Integration: Provision for bi-directional energy meters for grid-connected systems eligible for net metering under MSEDCL.
• Busbar & Cabling: Properly rated copper busbars and DC/AC cables ensuring minimal resistive losses and safe current handling.
• Labelling & Documentation: All boxes are clearly labelled with circuit details and rated specifications — making future maintenance and inspection easy for any qualified electrician.

Applications of Solar ACDB and DCDB Box System in Gadchiroli

The demand for Solar ACDB and DCDB Box System Installation in Gadchiroli spans across multiple sectors:

• Residential Rooftop Solar: Homes with 1kW to 10kW rooftop systems that need a safe, compliant AC/DC protection panel between panels, inverter, and household wiring.
• Agricultural Solar Pump Systems: Farmers using solar-powered water pumps for irrigation in Gadchiroli's vast agricultural zones, where DC protection from panel arrays is critical in lightning-prone open fields.
• Off-Grid & Hybrid Solar Systems: Remote villages and forest areas in Gadchiroli with limited grid access rely on battery-backed off-grid systems that require robust ACDB/DCDB setups for safe round-the-clock operation.
• Government & Tribal Welfare Schemes: Schools, health centres, gram panchayat offices, and Ashram schools under solar electrification schemes require certified ACDB/DCDB installations for compliance and safety.
• Commercial Establishments: Shops, petrol stations, cold storage units, and rice mills deploying solar systems that require industrial-grade protection boxes.
• Solar Street Lighting Projects: District-level solar street lighting networks where centralized ACDB panels manage power distribution to multiple street light circuits.
• Industrial Solar Plants: Cotton gins, bamboo processing units, and other industries in Gadchiroli adopting solar power at a larger scale, requiring multi-string DCDB panels and high-capacity ACDB units.

Advantages of Solar ACDB and DCDB Box System Installation in Gadchiroli

Investing in a professional Solar ACDB and DCDB Box System Installation in Gadchiroli by Sara Solar Services delivers life-saving and money-saving advantages:

1. Complete Electrical Safety: The primary purpose of ACDB and DCDB boxes is protection. They prevent electrical fires, short circuits, and dangerous voltage buildup that could otherwise harm people and property — a non-negotiable requirement in densely housed or remote areas of Gadchiroli.
2. Lightning & Surge Protection: Gadchiroli district experiences heavy lightning activity during the monsoon. Type 1 and Type 2 SPDs within the DCDB and ACDB absorb and divert these surges before they can destroy your inverter or panels.
3. System Isolation for Safe Maintenance: DC isolators and AC MCBs allow technicians to safely shut down specific sections of the solar system for inspection or repair without de-energizing the entire installation — reducing downtime and improving maintenance efficiency.
4. Protection of Inverter & Panels: By filtering out reverse currents, overcurrents, and voltage spikes at both the DC input and AC output stages, ACDB/DCDB boxes dramatically extend the lifespan of your inverter and solar panels.
5. Regulatory Compliance & Net Metering Approval: MSEDCL mandates properly installed ACDB and DCDB systems with approved components for all grid-connected solar systems. Our certified installations ensure smooth inspection clearance and net metering registration.

Conclusion

ACDB and DCDB box systems are essential components for ensuring the safety, efficiency, and long-term reliability of solar power installations. These systems protect solar equipment from electrical faults, improve energy distribution, and reduce operational risks.

If you are planning a solar project or upgrading an existing installation, professional Solar ACDB and DCDB Box System Installation in Gadchiroli is important for maximum protection and performance. Sara Solar Services provides high-quality installation solutions for residential, commercial, industrial, and agricultural solar systems.

With experienced technicians, advanced safety systems, and customer-focused service, Sara Solar Services continues to be a trusted name in solar electrical protection and solar infrastructure solutions.
